F.243 Data Sheet MJS-p-0439

back to Collection Data Sheets

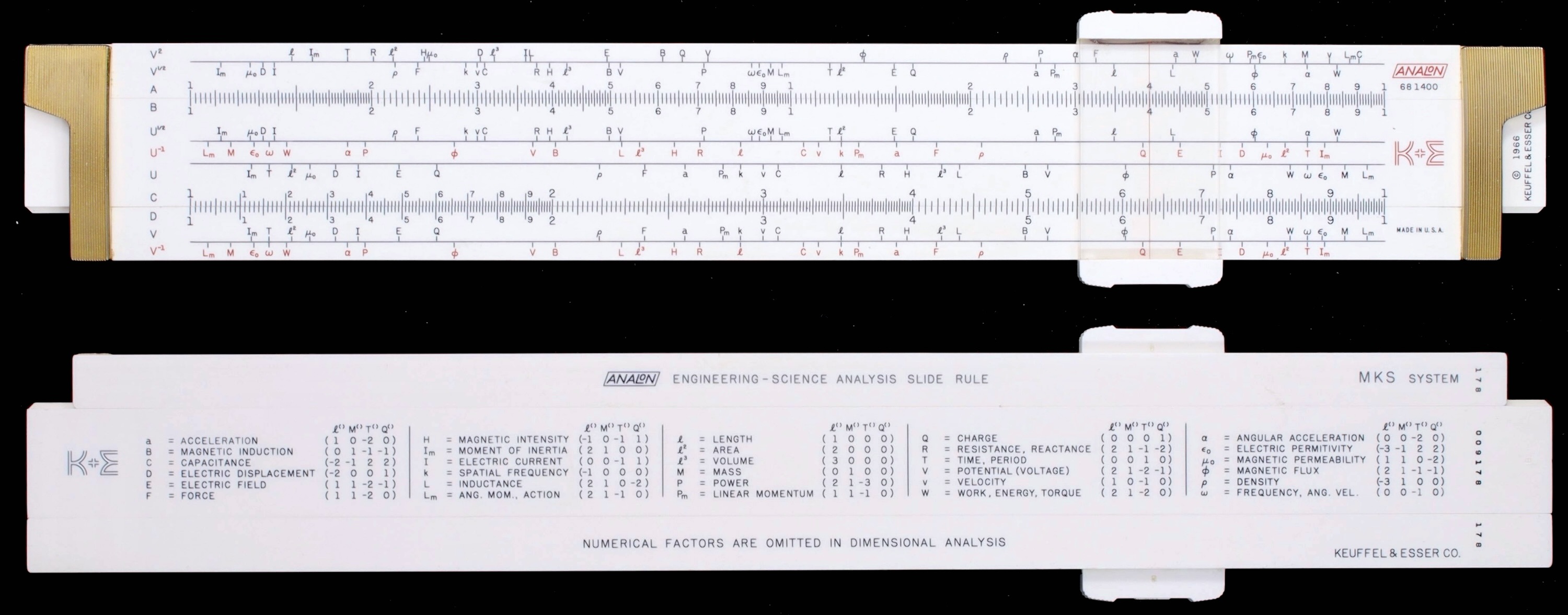

K&E, 68-1400, 1967

Serial Number or Date Stamp: 9178

Country: USA

Primary construction material: pl

Case included?: yes

General Description: Specialty linear slide rule

Length of 1 decade = 10 in, and overall scale length = 10 in. The largest physical dimension is 10 in.

Front Scales: V2 V1/2 A [ B U1/2 U-1 U C ] D V V-1

Back Scales:

Notes: Analon; slide rule for dimensional analysis; rare; very big Thank You to KD for help on this one

References: JOS 23.2 p22, http://www.sliderules.info/collection/10inch/070/1077-analon.htm

Date Acquired: 07/29/2026
