F.43 Data Sheet MJS-p-0082

back to Collection Data Sheets

Dietzgen, 1732, c.1952

Serial Number or Date Stamp: 548230

Country: USA

Primary construction material: wd

Case included?: yes + box

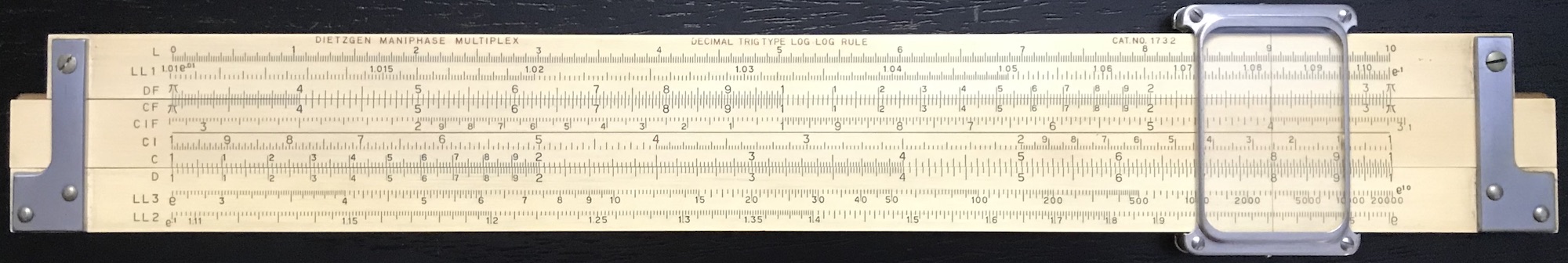

General Description: Advanced linear log-log duplex slide rule

Length of 1 decade = 10 in, and overall scale length = 10 in. The largest physical dimension is 10 in.

Front Scales: L LL1 DF [ CF CIF CI C ] D LL3 LL2

Back Scales: LL0 LL00 A [ B T ST S ] D DI K

Notes: Maniphase Multiplex Decimal Trig Type Log Log; rule in very good condition

References: http://sliderulemuseum.com/Dietzgen.htm; http://sliderulemuseum.com/Manuals/Dietzgen_CatalogMatrix_BruceBabcock1996_chart.jpg

Date Acquired: 08/01/2020
