F.173 Data Sheet MJS-p-0116

back to Collection Data Sheets

K&E, 4081-3, 1937

Serial Number or Date Stamp: 589003

Country: USA

Primary construction material: wd

Case included?: yes

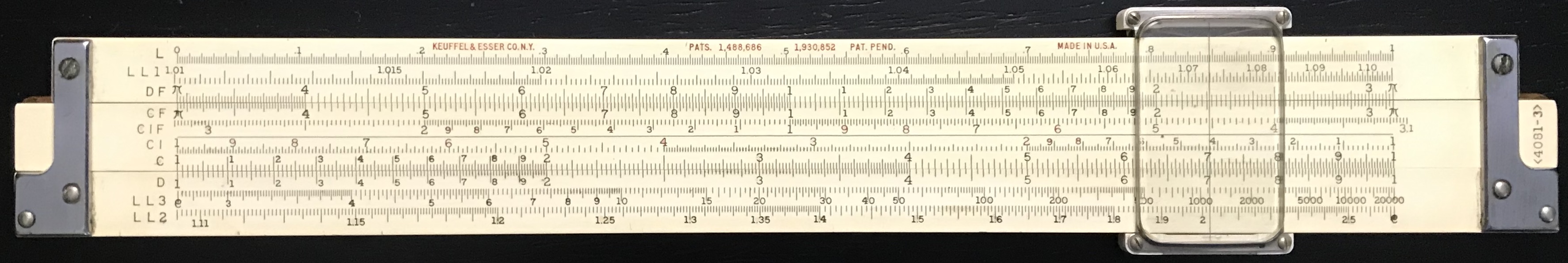

General Description: Advanced linear log-log duplex slide rule

Length of 1 decade = 10 in, and overall scale length = 10 in. The largest physical dimension is 10 in.

Front Scales: L LL1 DF [ CF CIF CI C ] D LL3 LL2

Back Scales: LL00 LL0 A [ B T ST S ] D DI K

Notes: Log Log Duplex Decitrig; very worn-out case – U. Illinois engraved as well as Gates

References: http://www.mccoys-kecatalogs.com/KECollection/4081-3/ke4081-3_s4.htm

Date Acquired: 08/01/2020
