F.70 Data Sheet MJS-p-0038

back to Collection Data Sheets

Faber, 367, 1904-1905

Serial Number or Date Stamp:

Country: GER

Primary construction material: wd

Case included?: box

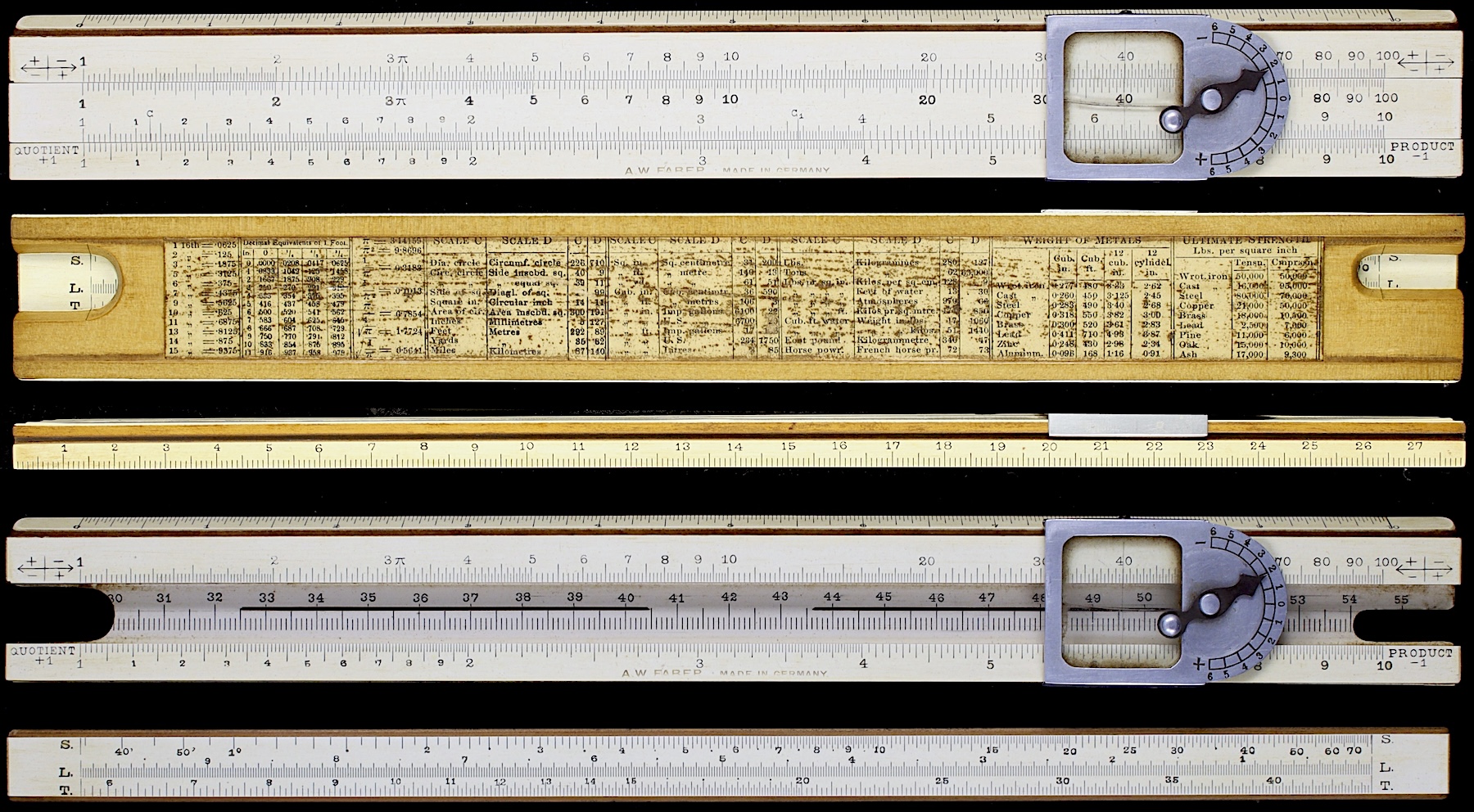

General Description: Basic linear Mannheim slide rule

Length of 1 decade = 10 in, and overall scale length = 10 in. The largest physical dimension is 10 in.

Front Scales: in /| A [ B C ] D || cm < cm >

Back Scales: [ S L T ]

Notes: digit-registering cursor with dome/flat rivets, cracked glass; box has 1900 reference

References: http://www.oughtred.org/jos/Catlow_%20Dating_Pre-1920_Faber-Castell_SlideRules.pdf; http://www.andtheugly.com/slides/faber/367/367.html

Date Acquired: 01/11/2017
