F.42 Data Sheet MJS-p-0081

back to Collection Data Sheets

Dietzgen, 1732, c.1952

Serial Number or Date Stamp: 542899

Country: USA

Primary construction material: wd

Case included?: yes

General Description: Advanced linear log-log duplex slide rule

Length of 1 decade = 10 in, and overall scale length = 10 in. The largest physical dimension is 10 in.

Front Scales: L LL1 DF [ CF CIF CI C ] D LL3 LL2

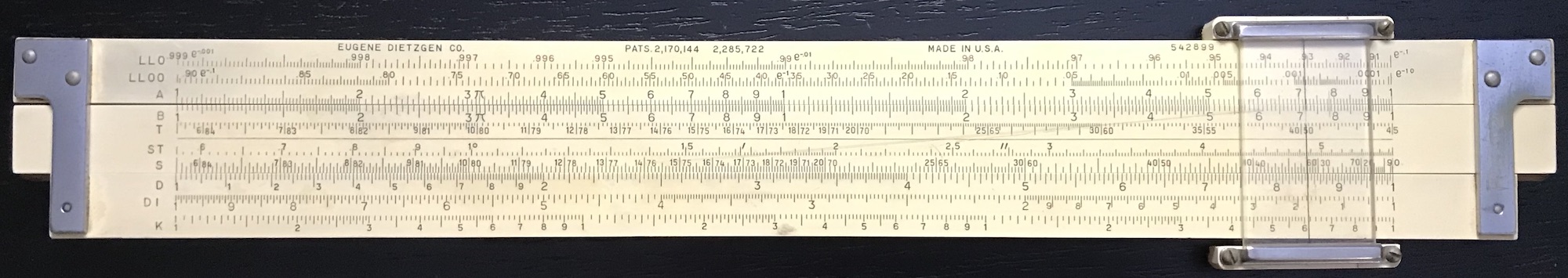

Back Scales: LL0 LL00 A [ B T ST S ] D DI K

Notes: Maniphase Multiplex Decimal Trig Type Log Log; worn case; rule in good shape; 87 stamped on end of stock; owned by Reitz

References: http://sliderulemuseum.com/Dietzgen.htm

Date Acquired: 08/01/2016
