F.298 Data Sheet MJS-p-0351

back to Collection Data Sheets

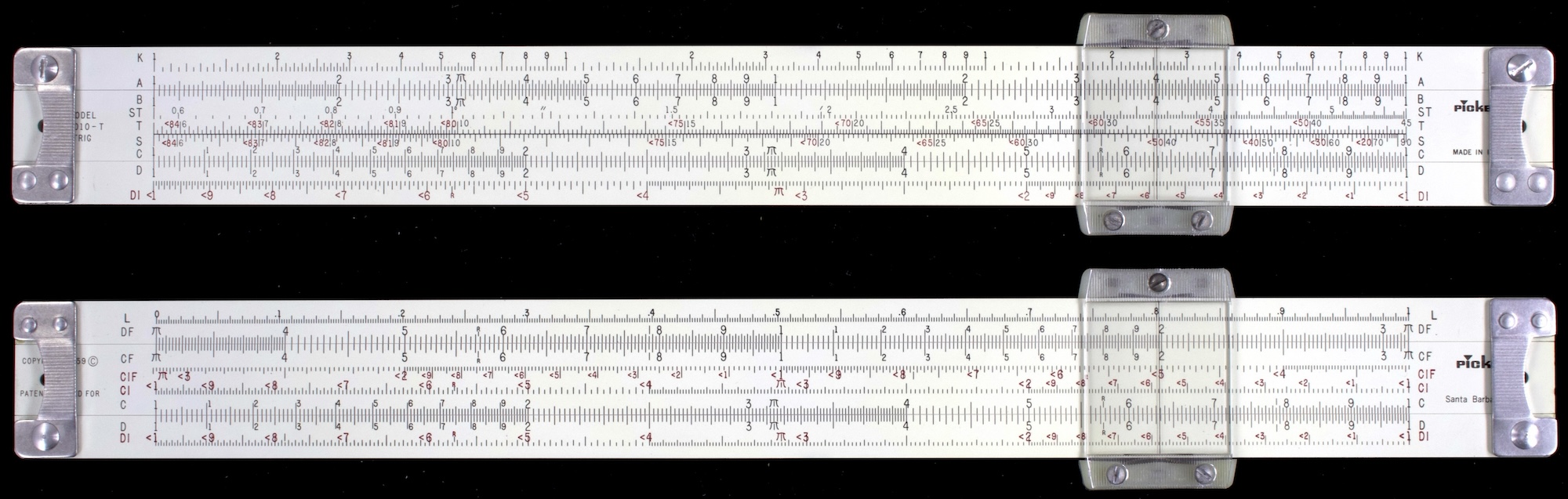

Pickett, N1010-T, 1964-1975

Serial Number or Date Stamp:

Country: USA

Primary construction material: Al

Case included?: yes+box

General Description: Basic linear polyphase trig slide rule

Length of 1 decade = 10 in, and overall scale length = 10 in. The largest physical dimension is 10 in.

Front Scales: K A [ B ST T S C ] D DI

Back Scales: L DF [ CF CIF CI C ] D DI

Notes: Powertrig rule; NIB, case, instructions, bag

References: http://www.sliderulemuseum.com/Manuals/Pickett_Chronology.pdf

Date Acquired: 08/19/2024
