F.12 Data Sheet MJS-p-0282

Aristo, 967U, 1954

Serial Number or Date Stamp: 542

Country: GER Primary construction material: pl Case included?: yes

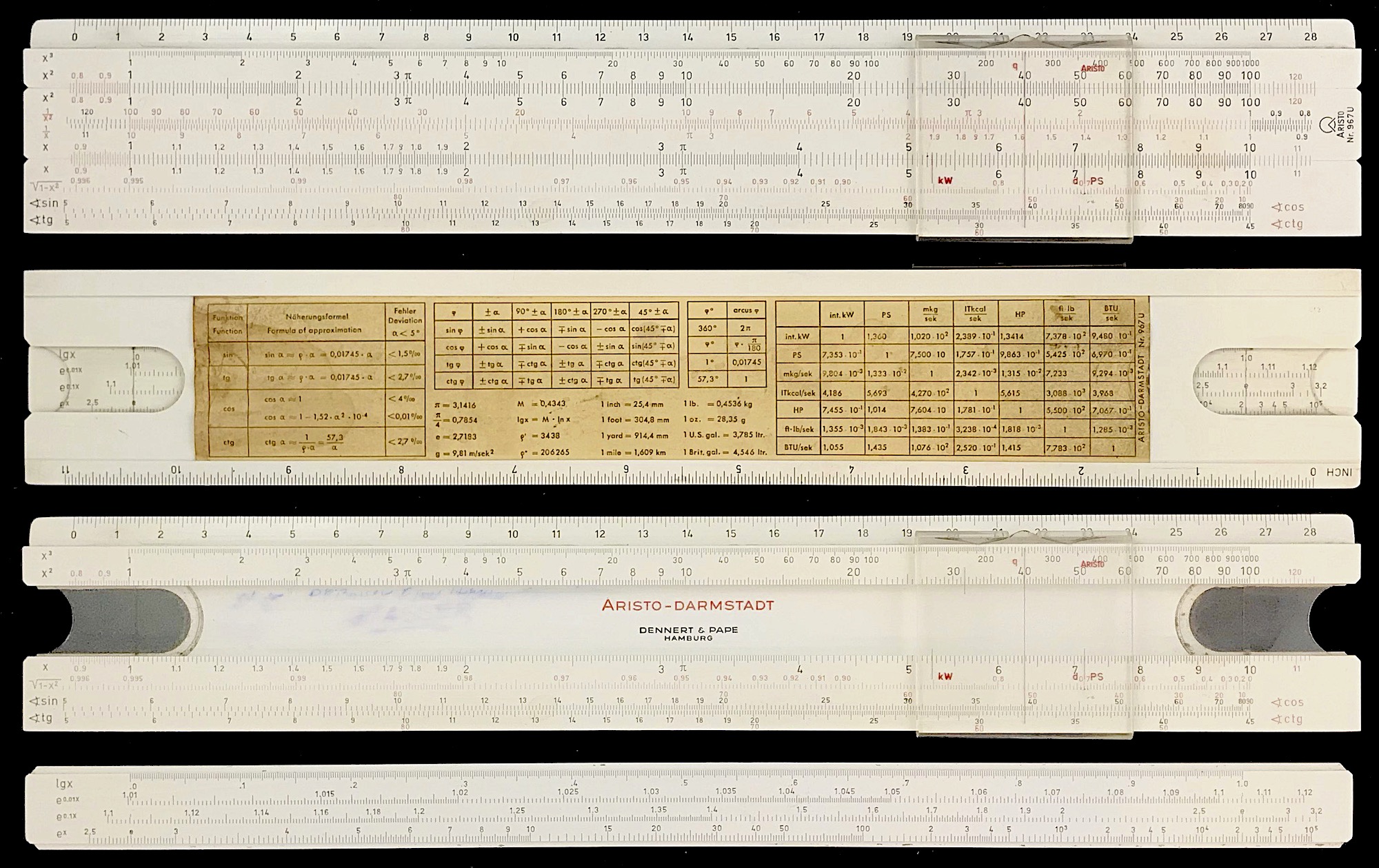

General Description: Advanced linear Darmstadt log-log slide rule

Length of 1 decade = 10 in, and overall scale length = 10 in. The largest physical dimension is 10 in.

Front Scales: cm /| K A [ B BI CI C ] D P S T | in

Back Scales: [ L LL1 LL2 LL3 ]

Notes: Standard 10-in Darmstadt scales; date stamp 542; 4-hairline cursor; gift from Herman Glasser to P. E. Bauer March 12 1954 while PEB was Gen. Manager at Allis Chalmers Mfg. Co. Norwood Works in Ohio

References: JOS v6.1p4

Date Acquired: 11/29/2022
