F.322 Data Sheet MJS-p-0364
back to Collection Data Sheets

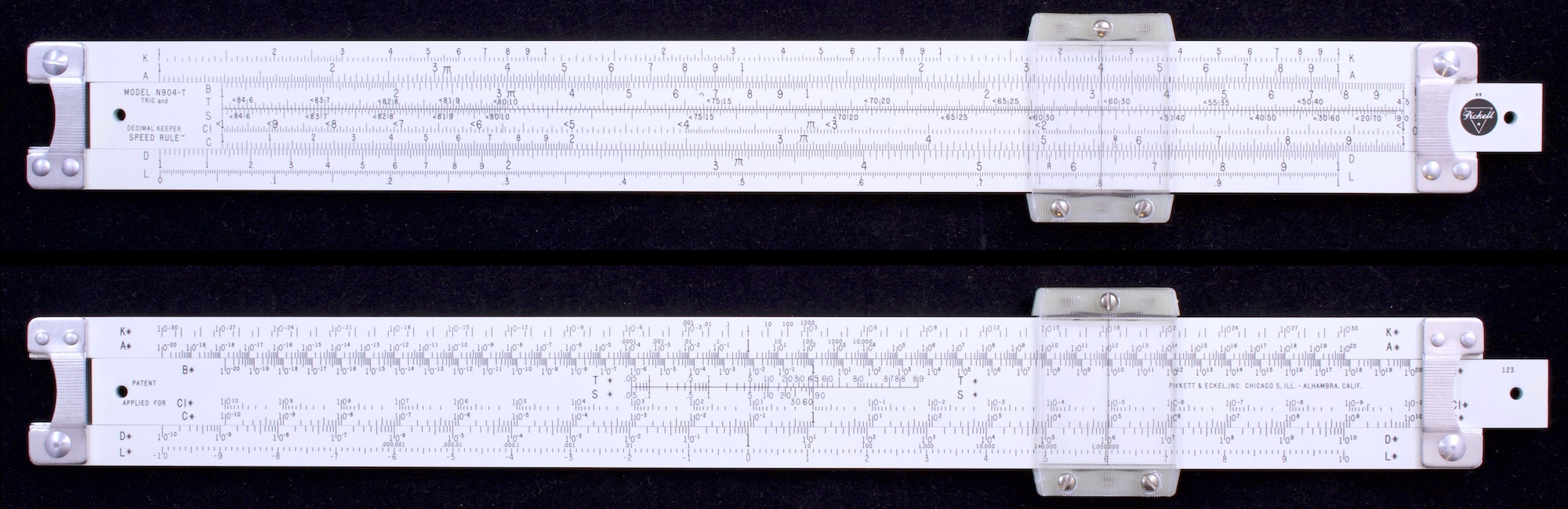

Pickett, N904-T, c.1970
Serial Number or Date Stamp:
Country: USA | Primary construction material: Al | Case included?: yes+box |
General Description: Basic linear beginner/student polyphase slide rule
Length of 1 decade = 10 in, and overall scale length = 10 in. The largest physical dimension is 10 in.
Front Scales: K A [ B T S CI C ] D L
Back Scales: K* A* [ B* T* S* CI* C* ] D* L*
Notes: Trig and Decimal Keeper Speed Rule; rare; logo Type 4; original packaging, instructions
References: JOS V33.1 p21 (2024); http://www.sliderulemuseum.com/Manuals/Pickett_Chronology.pdf
Date Acquired: 10/04/2024
