F.277 Data Sheet MJS-p-0296

back to Collection Data Sheets

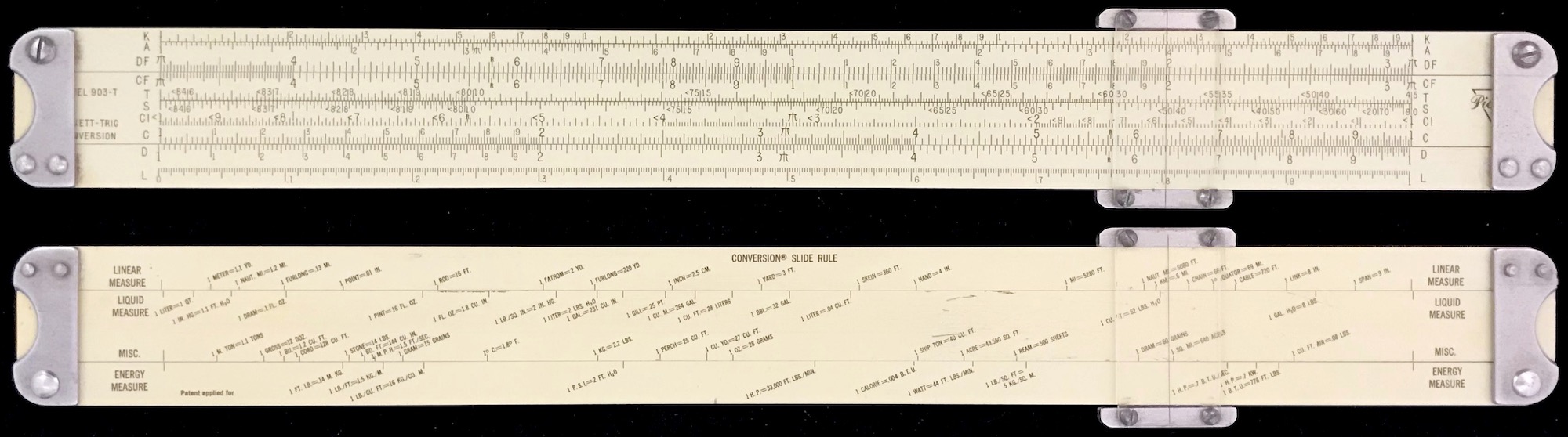

Pickett, 903-T, c.1954

Serial Number or Date Stamp:

Country: USA

Primary construction material: Al

Case included?: yes

General Description: Basic linear polyphase duplex slide rule

Length of 1 decade = 10 in, and overall scale length = 10 in. The largest physical dimension is 10 in.

Front Scales: K A DF [ CF T S CI C ] D L

Back Scales: LinMeas [ LiqMeas Misc ] EnMeas

Notes: rare Conversion Slide Rule type with gauge marks on back side

References: https://sliderulemuseum.com/Pickett.htm

Date Acquired: 04/08/2023
