F.174 Data Sheet MJS-p-0332

back to Collection Data Sheets

K&E, 4081-3, 1953

Serial Number or Date Stamp: 760291

Country: USA

Primary construction material: wd

Case included?: yes

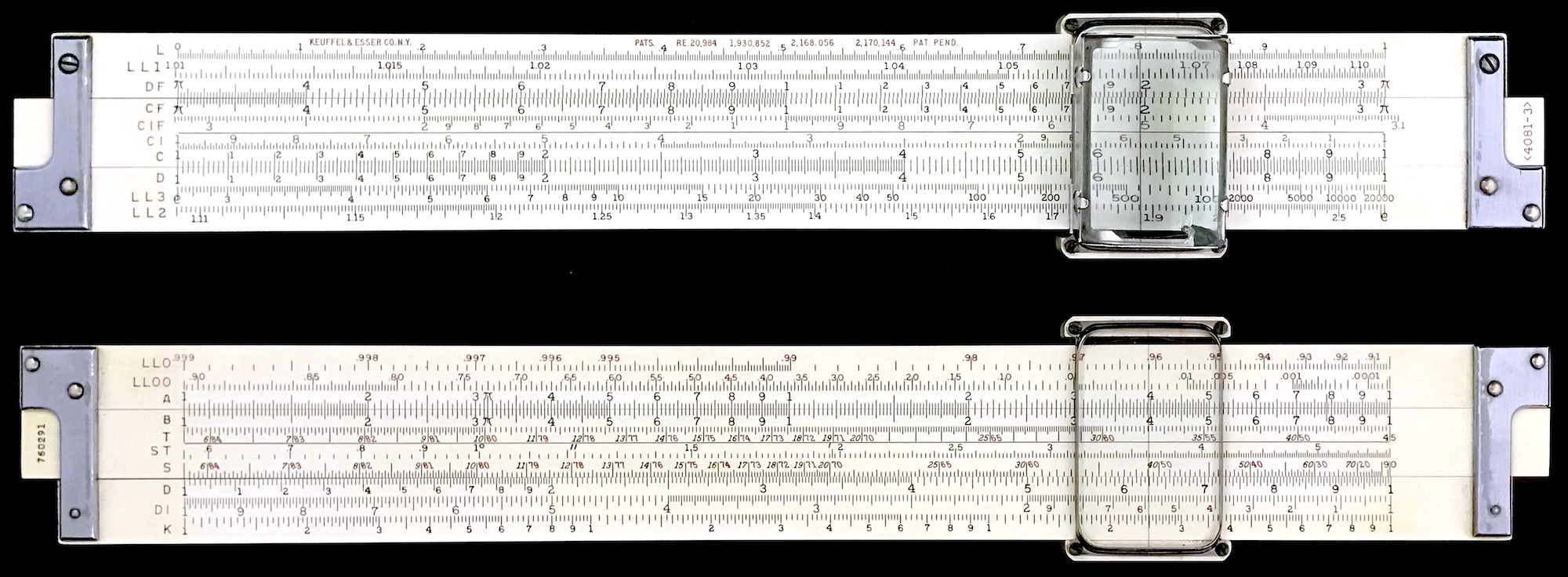

General Description: Advanced linear log-log duplex slide rule

Length of 1 decade = 10 in, and overall scale length = 10 in. The largest physical dimension is 10 in.

Front Scales: LL02 LL03 DF [ CF CIF CI C ] D LL3 LL2

Back Scales: LL0 LL00 A [ B T ST S ] D DI K

Notes: Log Log Duplex Decitrig; magnifier cursor; leather case made for magnifier, with belt loop; owner E.L. Haley on case

References: http://www.mccoys-kecatalogs.com/KECollection/4081-3/ke4081-3_s4.htm

Date Acquired: 12/15/2023
