F.288 Data Sheet MJS-p-0269

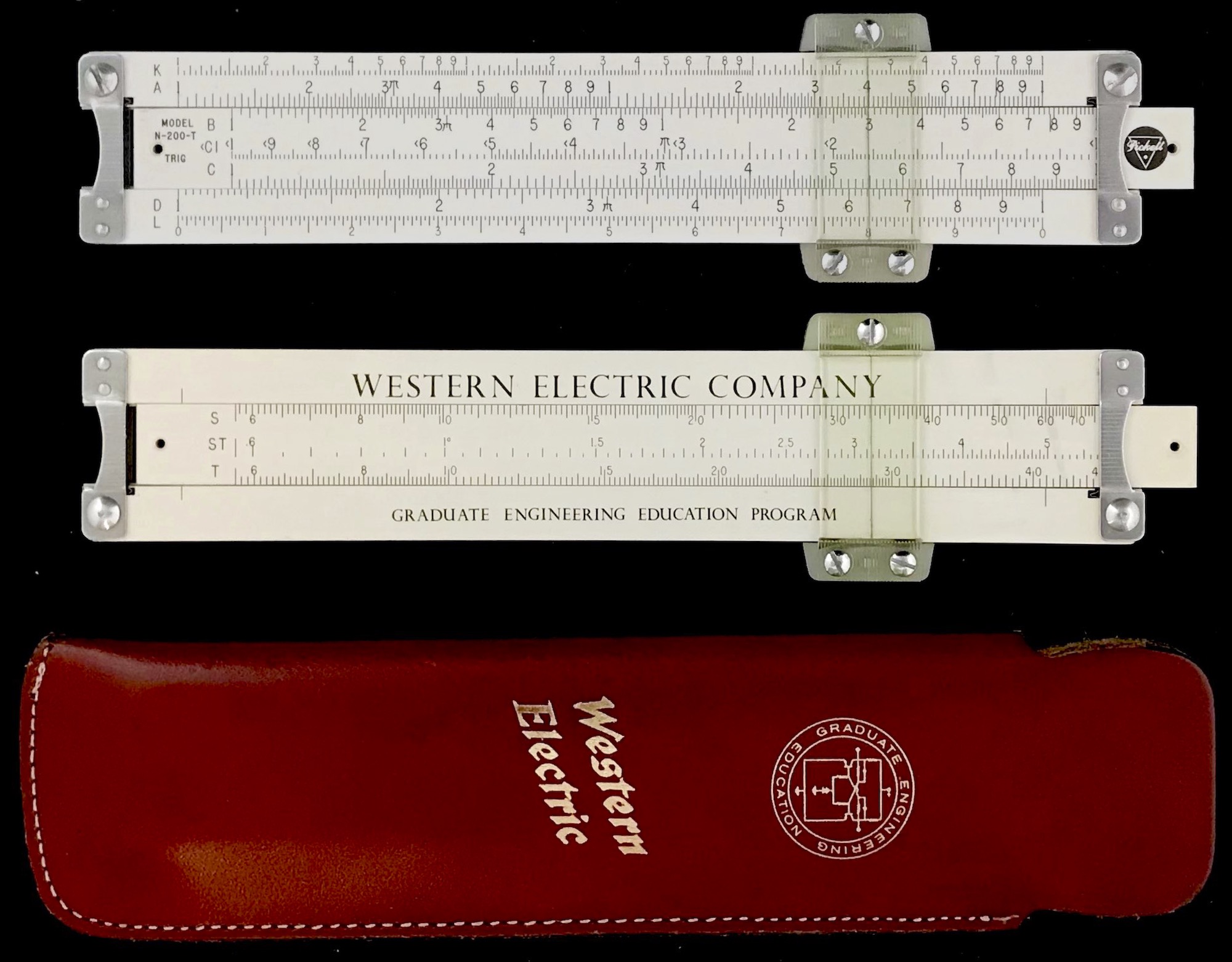

Pickett, N200-T Trig, 1962

Serial Number or Date Stamp:

Country: USA Primary construction material: Al Case included?: yes

General Description: Basic linear polyphase slide rule

Length of 1 decade = 5 in, and overall scale length = 5 in. The largest physical dimension is 5 in.

Front Scales: K A [ B CI C ] D L

Back Scales: [ S ST T ]

Notes: Black Logo, curved braces, nylon bars, convex lens, no D scale on back; Western Electric Company, Graduate Engineering Education Program on back and on case; owner Thomas H. Nolan graduated from IIT in 1965 in EE, worked for WE 1965-1985 in Naperville, IL, patent for EE circuit, worked on first telephone electronic switching system

References: https://sliderulemuseum.com/Pickett.htm

Date Acquired: 08/02/2022
