F.103 Data Sheet MJS-p-0188

back to Collection Data Sheets

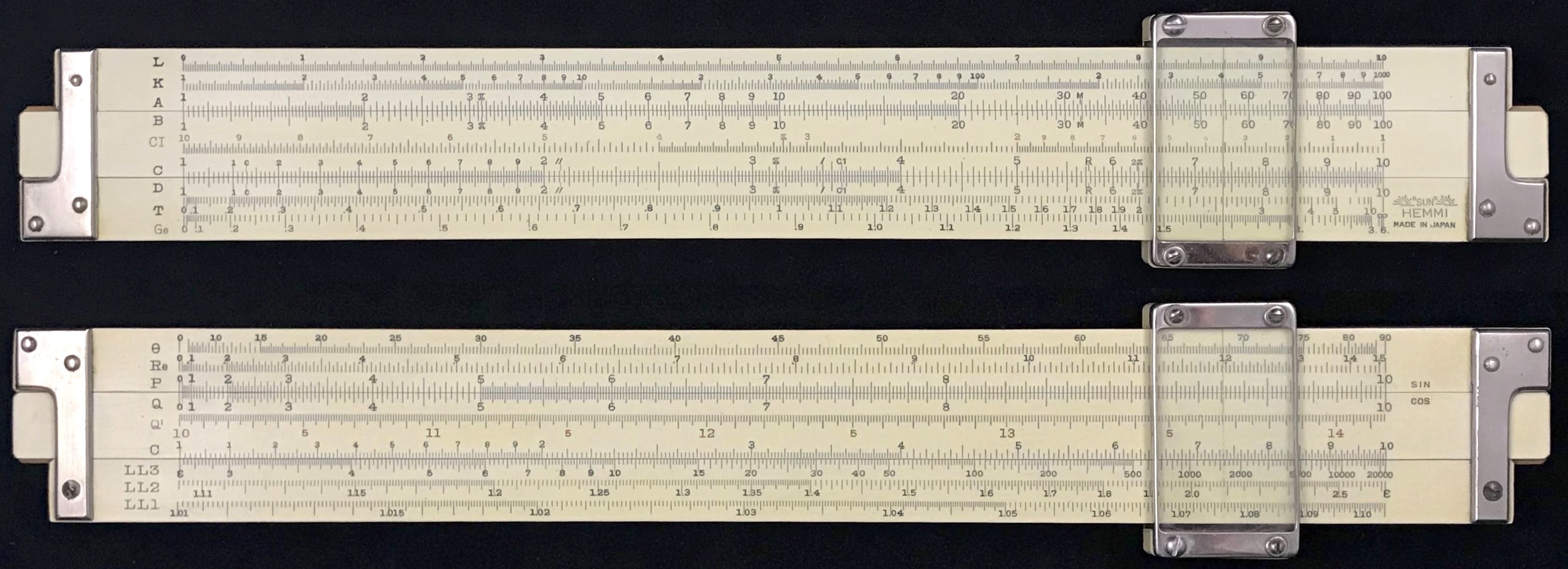

Hemmi, 153, 1931-1934

Serial Number or Date Stamp:

Country: JPN

Primary construction material: bb

Case included?: yes

General Description: Advanced linear log-log vector/hyperbolic duplex slide rule

Length of 1 decade = 10 in, and overall scale length = 10 in. The largest physical dimension is 10 in.

Front Scales: L K A [ B CI C ] D T Gtheta

Back Scales: theta Rtheta P [ Q Q’ C ] LL3 LL2 LL1

Notes: Electrical Engineers Universal Duplex; vector rule; serif type, very early rule, in very nice condition

References: JOS vol.12 no.1 (2003)

Date Acquired: 04/30/2021
